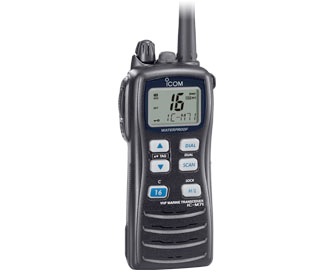

VHF MARINE TRANSCEIVER IC-M71
factor”- it's easy to use with just one hand
6W RF output, long lasting battery
Despite its compact body, the IC-M71's 6W transmit power can carry a conversation a long way. A large capacity 2000mAh Lithium-Ion battery pack allows for 15-16 hours of operation under normal conditions*.
* Tx:Rx:Stand-by=5:5:90 with BP-245.
600mW AF output
The built-in BTL amp doubles the audio output and delivers a loud 600mW (typical) audio from the internal speaker. You can hear a call even in noisy environments.
Advanced waterproof protection
The IC-M71 offers Icom's best-ever protection against water intrusion. This radio has been tested to survive after being drenched in 1.5m depth of water for 30 minutes. (Equivalent to IPX8)
Other features
- Built-in voice scrambler compatible with UT-112*
- Large, high resolution LCD display
- Auto scan function to start scanning, when receiving no signal for a preset time
- AquaQuake water draining function ejects water from speaker grill
- 4-step battery power indicator
- Dualwatch and Tri-watch functions
- Instant Ch.16 and Ch.9 access
- Up to 70 programmable channels**
** Appropriate license will be required.
Please note: Supplied antenna may differ depending on version.
BATTERY PACK
| BP-245N | (Li-Ion) | | |
| BC-119N | Rapid charger
| BC-166 | Regular charger | |
| BC-121N | Rapid charger | | |
| BC-145S | 16V/1A
| BC-147S | 12V/200mA
| BC-157S | 12V/7A |
| AD-114 | (Use with BC-119N/BC-121N) | | |
| CP-17L | (Use with BC-119N) | | |
| OPC-515L | (Use with BC-119N)
| OPC-656 | (Use with BC-121N) | |
| HM-125 | Waterproof, IPX7
| HM-167 | Waterproof, IPX8 | |
| HS-94* | Earhook type with boom microphone
| HS-95* | Behind-the-head type
| HS-97* | Throat microphone type |
HEADSETS ADAPTER CABLE
| OPC-1392 | | | |
| MB-86 |
| MB-103 | | |
| MB-96N | MB-86 type swivel joint supplied.
| MB-96F | Fixed type | |
| UT-112 compatibility | Total of 32 voice scramble codes available | | |
| FA-S59V |
| FA-S64V |
| IC-M71 | |
| Frequency range | Tx | 156.000-161.450MHz | Rx | 156.000-163.425MHz |
Dimensions (W×H×D) | 52.5×125×30 mm | |
Weight (approx.) | 280g (With BP-245N) | |
Current drain (approx.) | Transmit (High) | 1.7A typ. (6W) | Max. audio | 400mA typ. |
Sensitivity (at 20dB SINAD; emf) | -2dBμ typ. | |
Intermodulation rejection | 68dB | |
Audio output power (With an 8Ω load) | 600mW typ | |
RF output power | 6/3/1W | |
Waterproof protection | IPX8 (1.5m depth/30 min) | |
Waterproof speaker-microphone | HM-125 or HM-167 | |
VOX headset | HS-94/HS-95/HS-97+OPC-1392 | |
Operating time (approx.)*1 | 15 hrs with BP-245N | |
Tag scan | Available | |
Favorite channel | - | |
AquaQuake draining function | Available | |
CTCSS/DTCS with PMR channel | - | |
Voice scrambler | Depending on version | |
Intrinsically safe | - | |
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| Low Pressure Storage | 500.4 I |
Low Pressure Operation | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Blowing | 506.4 I |
Rain Drip | 506.4 III |
Humidity | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Water Immersion | 512.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
All stated specifications are subject to change without notice or obligation.
