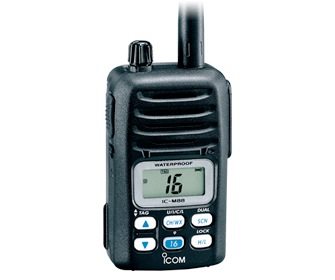

VHF MARINE TRANSCEIVER IC-M88

Pasted Graphiclogo_std_millogo_std_submersiblelogo_std_intrinsically


Compact size for commercial or recreational use
Tough and waterproof
The IC-M88 is built tough to withstand hazardous environments. Even if it is dropped into water, its waterproof construction* will protect it from harm.
* Equivalent to IPX7. (1m depth/30min.)
Simple operation
The volume/power knob combines with 6 clearly labeled front panel buttons to maximize simplicity of operation. A large, clear LCD with backlighting and backlit buttons make night time operation easy.
Li-Ion battery for long battery life
With the standard battery pack, the IC-M88 provides up to 15 hours of operating time.* Also, no worries about 'memory effect' of the battery with Li-Ion technology.
* Tx:Rx:Stand-by= 5:5:90 with BP-227.
Intrinsically safe versions
Versions are available that conform to the intrinsically safe rating of the FM Global. See the specification pages for the details.
22 programmable channels
The IC-M88 has 22 programmable channels reserved for land use (146–174MHz).* Wide/narrow channel spacing is programmable for each channel, and CTCSS and DTCS signaling is built-in.
* Appropriate license will be required.
Other features
  • Instant access to Ch.16 and Ch.9
  • Simple add/delete TAG scanning
  • Monitor button opens squelch
  • Auto power save
  • Key lock function
  • 4-step battery indicator
  • Auto WX alert function (U.S.A. version only)
FM Intrinsically Safe versions
Approved intrinsically safe classifications for the IC-M88 intrinsically safe version. logo_std_fm_approved Intrinsically safe : Class I, II, III, Division 1, Groups C, D, E, F, G Non-incendive : Class I, Division 2, Groups A, B, C, D Hazardous locations when used with Icom BP-227FM battery pack. "Max. Temp. T3C at 40°C". The HM-138 is an approved accessory for use with Intrinsically Safe versions.

BATTERY CASE
BP-226
AA(LR6)×5 cells Water resistance, equivalent to IPX4
BP-226



BATTERY PACKS
BP-227_AX_FM
(Li-Ion)
7.4V/1850mAh (min.),
1950mAh (typ.)
BP-227
BP-227_AX_FM
(Li-Ion)
7.4V/1850mAh (min.),
1950mAh (typ.)
(For Intrinsically safe use)
BP-227FM


DESKTOP CHARGERS
BC-119N
Rapid charger
(Use with AD-100)
BC-119N
BC-152
Regular charger
BC-152


MULTI CHARGER
BC-121N
Rapid charger
(Use with AD-100)
BC-121N



AC ADAPTERS
BC-145S
16V/1A
(Use with BC-119N)
BC-145S
BC-147S
12V/200mA
(Use with BC-152)
BC-147S
BC-157S
12V/7A
(Use with BC-121N)
BC-157S

CHARGER ADAPTER
AD-100
(Use with BC-119N/BC-121N)
AD-100



CIGARETTE LIGHTER CABLE
CP-17L
(Use with BC-119N/BC-152)
CP-17L



DC POWER CABLES
OPC-515L
(Use with BC-119N/BC-152)
OPC-515L
OPC-656
(Use with BC-121N)
OPC-656


SPEAKER MICROPHONE
HM-138
Submersible, IPX7
HM-138
HM-168
Waterproof, IPX7
HM-168


BELT CLIPS
MB-86
MB-86
MB-98
MB-98


LEATHER BELT HANGERS
MB-96N_2
MB-86 type swivel joint supplied.
MB-96N
MB-96F
Fixed type
(Use with MB-98)
MB-96F


VOICE SCRAMBLER
UT-112
Total of 32 voice scramble codes available
(IS version only)
UT-112 capability



ANTENNA
no_photo
FA-S59V


7/16×313/16×117/32 in



IC-M88
Frequency range
Tx

156.025–157.425MHz

Rx

156.050–163.275MHz

LMR; Tx/Rx

146–174MHz

Dimensions (W×H×D)
(Projections not included)

62×97×39 mm
2

Weight (approx.)

280g; 9.9oz (With BP-227)

Current drain

Transmit (High)

1.6A typical

Max. audio

200mA typical

Power save

20mA typical

Sensitivity (at 12dB SINAD)

0.25μV typical

Intermodulation rejection

70dB typical

Audio output power (10% dist./ 8Ω load)

350mW typical

RF output power

5/3/1W

Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

IC-M88
Low Pressure Storage (Altitude)

Available

Low Pressure Operation (Altitude)

Available

High Temp. Storage

Available

High Temp. Operation

Available

Low Temp. Storage

Available

Low Temp. Operation

Available

Temp. Shock

Available

Solar Radiation

Available

Rain Blowing

Available

Rain Drip

Available

Humidity Induced

Available

Humidity Aggravate

Available

Salt Fog

Available

Dust Blowing

Available

Vibration

Available

Shock Functional

Available

Shock Transit Drop

Available


All stated specifications are subject to change without notice or obligation.
