Mobile Station HF - Antenna Systems

Barrett 910

The Barrett 910 is an automatic tuning mobile antenna designed to interface with Barrett 500, 900 and 2000 series transceivers.

Providing a frequency coverage of 2 to 30MHz, the Barrett 910 features rapid tuning (typically <1.5S) and low power consumption. High radiation efficiency and accurate tuning are assured by maximising antenna current (not minimising the VSWR) on every tune.

The Barrett 910 antenna incorporates a wideband amplifier that is activated in receive mode to enable channel scanning. Due to its rugged RF design the Barrett 910 antenna can also be used with high duty cycle applications such as the Barrett 923 or 2020 fax and data system. The active tuning elements of the antenna are housed in a grey weatherproof, impact resistant reinforced poly-carbonate moulding that incorporates a heavy duty anti-vibration mount at its base, even with its rugged construction, the Barrett 910 weighs only 2.8 kg. The Barrett 910 is supplied with an integral 2 metre whip and spring.

The main antenna body has a 1.5 metre stub control cable, with a 4.5 metre extension cable to connect it with the transceiver. This composite cable incorporates coaxial, power supply and control cables. Additional 6 metre or 10 metre extension cables are available if required.


Pasted Graphic 5Pasted Graphic 6





Barrett 2019

The Barrett 2019 is a solid state automatic tuning mobile HF antenna, designed for use with Barrett 2000 series transceivers.

The 2019 provides frequency coverage of 2 to 30 MHz with a rapid tuning time of typically less that 1.5 S.

High radiation efficiency and accurate tuning are assured by maximising the antenna current on every tune. This is unlike most manufacturers that minimise the VSWR.

The Barrett 2019 antenna activates a wideband amplifier in receive mode to enable channel scanning. Due to its rugged RF design, the Barrett 2019 antenna can also be used with high duty cycle applications such as the Barrett 2020 email, fax and data system and is fully compatible with ALE operation.

An optional GPS receiver can be fitted within the 2019 antenna casing and interfaces directly through the RF control cable to current production 2050 transceivers.

Pasted Graphic 7Pasted Graphic 8Pasted Graphic 9






Barrett 917

The 917 series unloaded marine whip antennas are designed to operate in all marine bands from 2 to 30 MHz.

Manufactured from heavy gauge aluminium tubing with a polymer coating or fibreglass with a rugged coating for marine and UV protection, they offer a large, low loss radiating surface. All fittings are manufactured from nylon, stainless steel and chromed bronze. 917 whip antennas are supplied in
a range of sizes and mounting configurations to suit differing types and sizes of vessels.

BC91710: 3.6 metre marine swing-down whip antenna

Is a 3.6 metre whip suitable for smaller vessels, particularly high speed craft. It is supplied complete with a stainless steel swing-down base fitting.

BC91711: 5.5 metre two piece marine side-mount whip antenna
Is a 5.5 metre whip suitable for vessels over 10 metres in length. The whip is supplied in two sections which screw together on a self locking taper. Also included are side-mount insulators for mounting against a vertical structure.

BC91712: 7.0 metre high efficiency marine side-mount whip antenna
Is an 7.0 metre whip suitable for large vessels, the whip is supplied in two sections and is supplied complete with side-mount insulators for mounting against a vertical structure.

BC91713: 10 metre GMDSS high power whip
Is a 10 metre, GMDSS standard, base mounted whip suitable for large vessels. It is designed for professional use and can withstand wind speeds of up to 200 km/h without permanent deformation.

Pasted Graphic 10

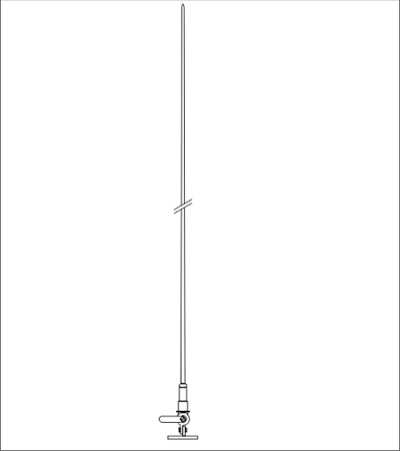

BC91710: 3.6 metre marine swing-down whip antenna

Pasted Graphic 11

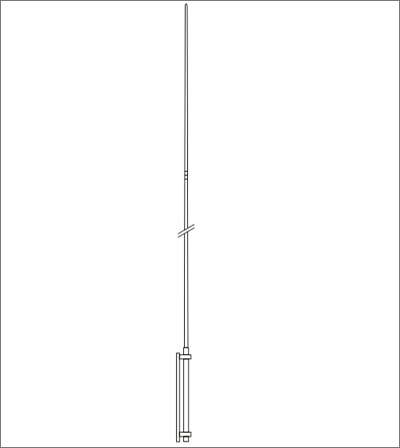

BC91711: 5.5 metre two piece marine side-mount whip antenna
BC91712: 7.0 metre high efficiency marine side-mount whip antenna

Pasted Graphic 12

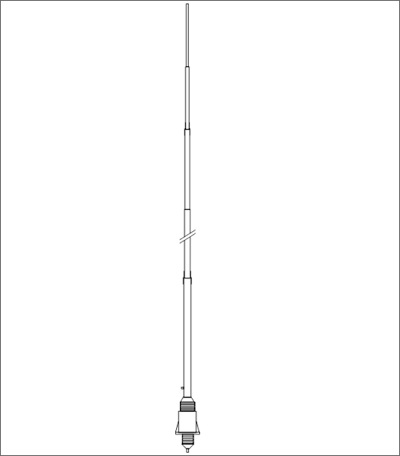

BC91713: 10 metre GMDSS high power whip



Barrett 914

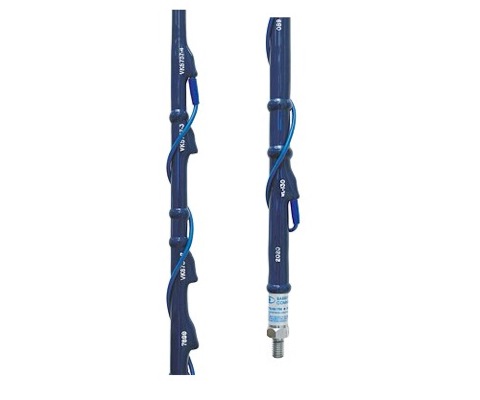

The Barrett 914 range of manual tapped whip antennas are designed for land mobile installations where a limited number of frequencies are required

Frequency selection is achieved by the re-location of a tapping plug to a specific socket for each frequency. Barrett 914 antennas have a maximum of 12 individual frequencies in the range 2 to 30MHz.

The complete assembly consists of a helically wound whip section, encapsulated in a tough polyurethane resin and a separate heavy duty mounting base and spring. Connection to the transceiver is via an integral UHF coaxial connector in the mounting base.

The Barrett 914 antenna is an extremely robust, high efficiency antenna, with no moving parts and is designed for use in the harshest environments.

Pasted Graphic 13


Barrett 2018

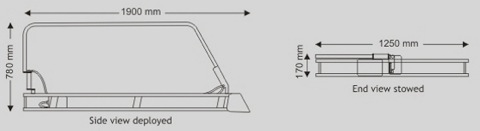

The Barrett 2018 mobile magnetic loop HF antenna is significantly more efficient than any whip-type vehicle antenna; producing considerably more transmit and receive power. The 2018 has been integrated in a custom made roof rack.

The ground plane for the antenna is a heavy-duty aluminium mesh floor, which is welded to the frame bars, maximising current within the radiating loop.

Using a closed magnetic loop antenna design, the antenna effectively shields and isolates vehicle ignition noise thus providing greater clarity in communications. The roof rack is field proven in some of
the world's worst remote area conditions and is designed to withstand rough corrugated, pot holed and unsealed roads.

Pasted Graphic Pasted Graphic 1



Pasted Graphic 2 Pasted Graphic 3



Pasted Graphic 4
