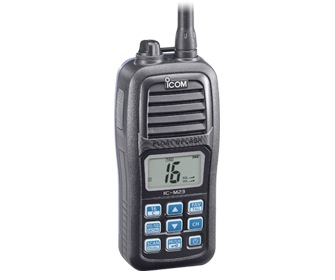

VHF MARINE TRANSCEIVER IC-M23

Pasted Graphic 1Pasted Graphic 2

FLOAT'N FLASH
Icom pioneered the floating VHF marine radio, and others followed. Setting a new trend yet again, the IC-M23 floats and lets you know where it is with the flashing feature. The radio flashes in the water, even when the power is off! It is smaller and lighter than any other buoyant marine handheld too.
Float'n flash*
With its innovative flashing red LED light, an overboard IC-M23 is easy to find, day or night. The light flashes even if the radio is turned off.
* US patent pending.

Smallest and lightest in the world
As a buoyant VHF marine transceiver, the IC-M23 has the smallest and lightest body in the world.*
* As of December, 2010, researched by Icom.
Energy-saving 3.7V circuitry*
The IC-M23 is powered by the 3.7V Lithium-Ion battery pack, BP-266, to reduce the capacity and weight of the radio. A newly developed PA circuit provides 5W (approx.) RF output and powerful 600mW (typ.) audio even at this low voltage, while saving battery consumption for 10 hours of operating time.*
* Typical operation with Tx (Hi): Rx: standby=5:5:90. US patent pending.
Easy to see large LCD
01
The large, easy to see LCD (32×16 mm) offers a clear 2 - digit channel number indication.

Built-in regular charger circuitry
Recharge the IC-M23 by plugging the wall charger directly in to the radio. By eliminating exposed metal charging points, the IC-M23 is even more protected from water damage.
Volume loud and mute functions
The volume loud/mute functions temporarily change the volume to the maximum/minimum level with two touches of a button. Depending on the background noise level, you can easily change the volume level to capture the received message.
Other features
  • Waterproof construction equivalent to IPX7
    (1m depth for 30 minutes)
  • Dual/Tri-watch functions
  • Auto scan function
  • One-touch access to Ch 16
  • 4-step battery life indicator
  • Tag scan and Favorite channel functions
  • LCD and keypad back lighting
  • AquaQuake™ draining function

AQUAQUAKE is a trademark of Icom Incorporated. All other products of brands are registered trademarks or trademarks of their respective holders.

BATTERY PACK
BP-266
(Li-Ion)
3.7V/1500mAh (min.),
1590mAh (typ.)
BP-266*



* BP-266 must be removed from the radio for charging in the BC-119N.

DESKTOP CHARGER
BC-119N
Rapid charger
BC-119N



AC ADAPTERS
BC-199S
BC-199S*
BC-145S
BC-145S*


* BC-199SA/BC-145SA for 120V AC. SE for 230V AC. SV for 240V AC.

CHARGER ADAPTER
AD-123
(Use with BC-119N)
AD-123



CIGARETTE LIGHTER CABLE
CP-24
CP-24



BELT CLIP
MB-124
MB-124



ANTENNA
FA-SC58V
FA-SC58V



IC-M23
Frequency range
Tx

156.000–161.450MHz

Rx

156.000–163.425MHz

Dimensions (W×H×D)
(Projections not included)

58.5×128.5×34.5 mm

Weight (approx.)

260g
(With BP-266, FA-SC58V, MB-124)

Current drain (approx.)
(at 3.V DC)

Transmit (High)

2.3A

Max. audio

350mA typ.

Sensitivity (at 20dB SINAD; emf)

−4dBμV typical

Intermodulation rejection

68dB

Audio output power (With an 8Ω load)

200mW

RF output power

5W/1W approx.

Applicable IP Rating and environmental test.

Ingress Protection Standard

Waterproof

IPX7 (Waterproof protection)


Environmental Test Standard

Vibration

IEC60945



All stated specifications are subject to change without notice or obligation.
